OPTIMUM DRO5

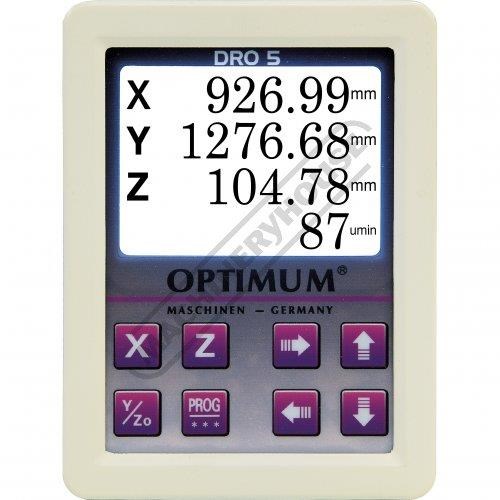

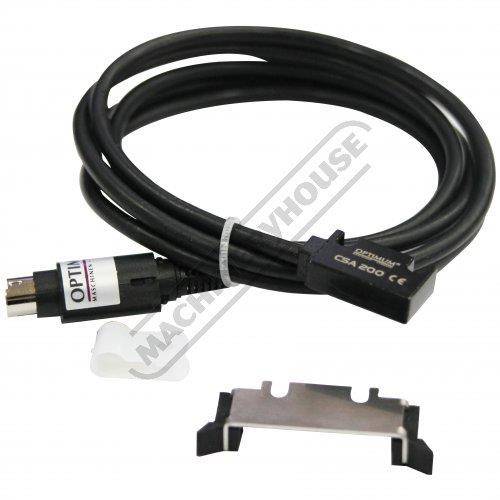

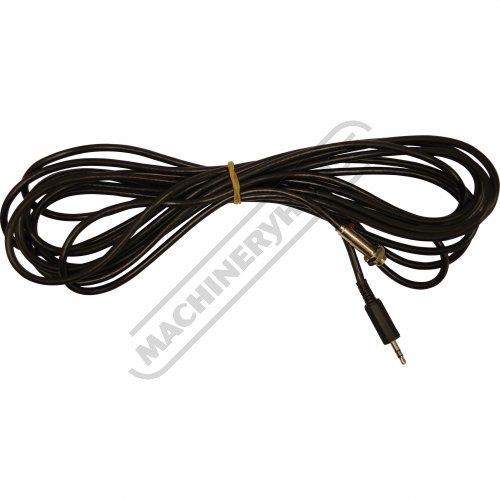

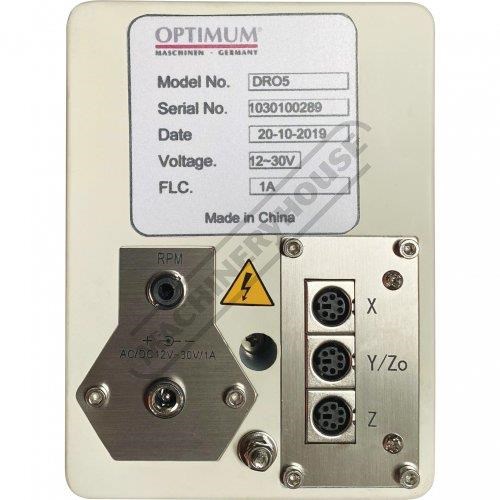

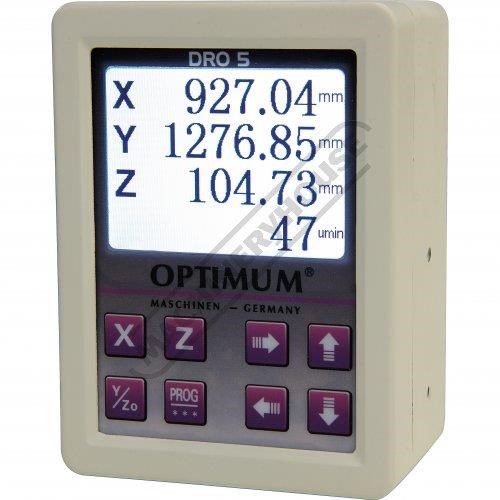

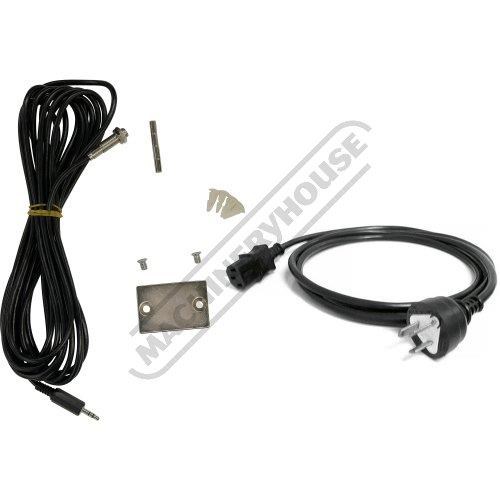

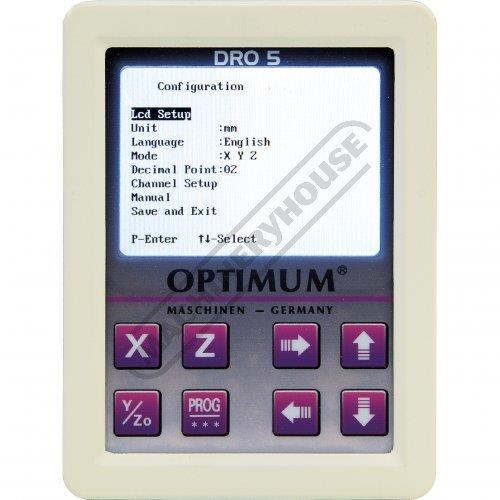

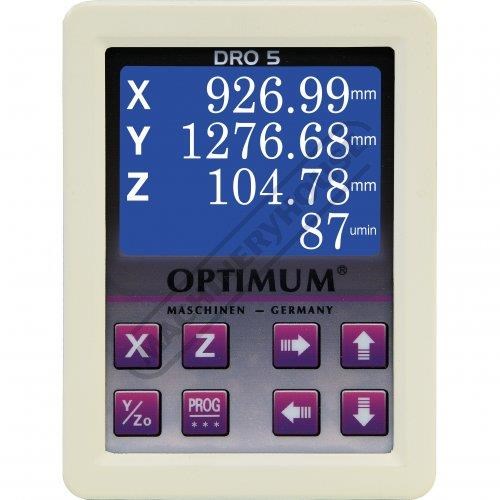

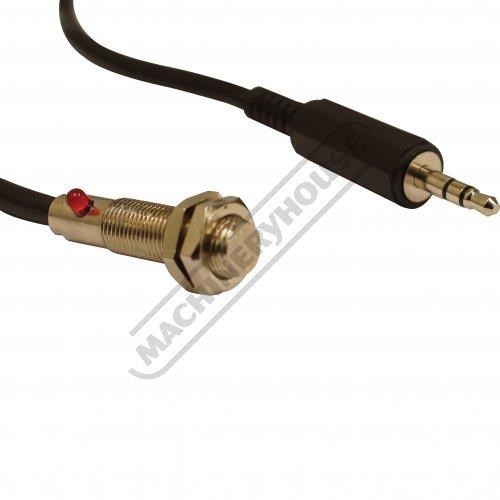

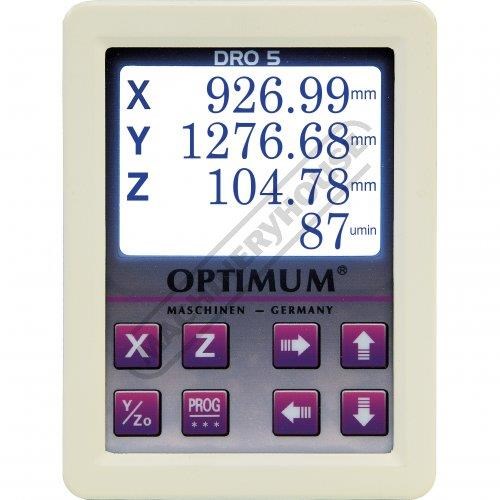

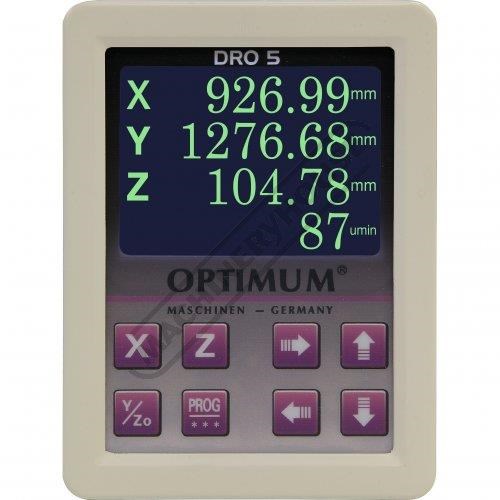

DRO5 3-Axis Optimum Digital Readout Counter - 1??m Includes RPM Speed Display Suits Lathes & Mills OPTIMUM DRO5 3-Axis Optimum Digital Readout Counter - 1??m Includes RPM Speed Display Suits Lathes & Mills CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES. Order Code: D695 This NEW DR05 3-Axis digital counter now with RPM speed display is highly suited to hobby & model engineer lathes & milling machines. Please note: each Axis requires a DR05-RH reader head and a DR03-MS magnetic scale to make operational. Features: Mills X Y Z Axis or Lathes X Y Z Axis + (Z0) RPM speed display Display: 3 line position display one speed display 4 different LCD screen colour options 0?? to 50??C operating temperature IP50 rated protection Three incremental inputs Four-line LCD display User-friendly menu navigation Rugged aluminium housing Programming from the front 98mm x 65mm x 134mm (LxWxH) 240V-24V transformer with 6 metre lead Key Functions: 2 or 3 decimal point selection Counting resolution setting Counting direction setting Linear error correction setting Metric / inches conversion setting LCD display status setting Contrast & backlight setting Speed mode setting Basic value setting Please Note: If fitting this DRO onto machines other than Optimum brand you will need to make mounting brackets to suit your requirements Specifications: ORDER CODE: D695 MODEL: DRO5 Axis Type (No.): 3-Axis + RPM Display Accuracy (??m): 1 Voltage (V): 240 Suits: Mills & Lathes Suits: ~ To Purchase Online Please Visit The Machineryhouse Website & Search For 'D695' Visit us in-store at: Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152 Melbourne - 4 Abbotts Road, Dandenong South VIC 3175 Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108 Perth - 11 Valentine Street, Kewdale WA 6105 Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
