Title	MCCLOSKEY C3 CONE CRUSHER
Type	Screening and Crushing
Sub Type	Screening - Crushing
Class	Impactor
Make	MCCLOSKEY
Model	C3 CONE CRUSHER
Sale Price	POA
Listing Type	Used
Stock Number	050925_2
RefCode	TA1286433

Description

Offering high material capacity and throughput, large stockpile capacity, and customer focused features; the C3 Cone Crusher puts McCloskey to the fore of mobile crushing plants and pushes the boundaries of industry performance. The C3 cone crusher provides a high degree of control over the final product, making it the ideal portable secondary crusher.

FEATURES
- MC300 Cone
- 380kW (510Hp) engine
- Integrated hopper with folding rear door
- I-beam plate fabricated chassis construction
- Large gap between crusher discharge and main conveyor feedboot
- Open chassis design for ease of maintenance
- Fast setup time

SPECIFICATIONS
- Feed Opening 910mm
- Feeder Belt Width 1200mm
- Hopper Volume 5m³ - 6.2m³
- Crusher Drive Direct drive
- Stockpile Height 3472mm
- Main Conveyor Belt Width 1200mm

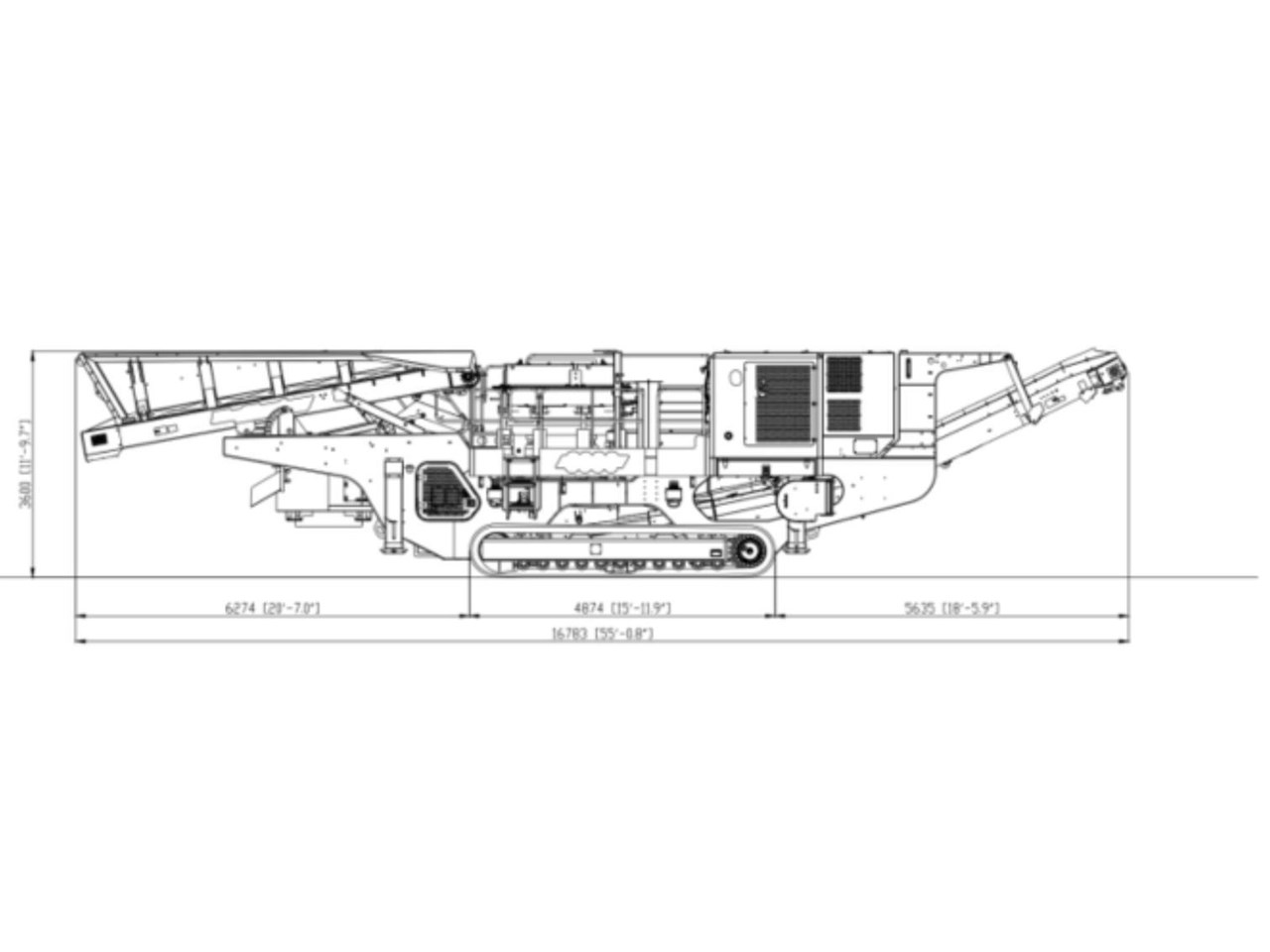

TRANSPORT
- Transport Height 3.6m
- Transport Length 17.5m (
- Transport Width 3.15m
- Weight 51,400Kgs
