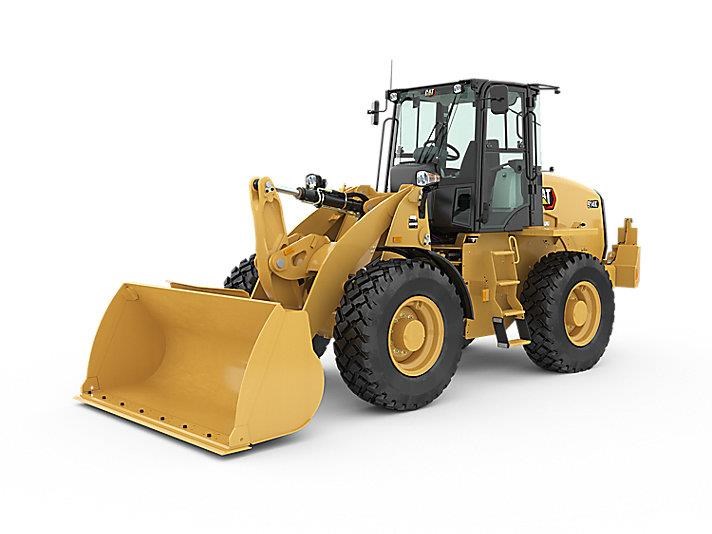

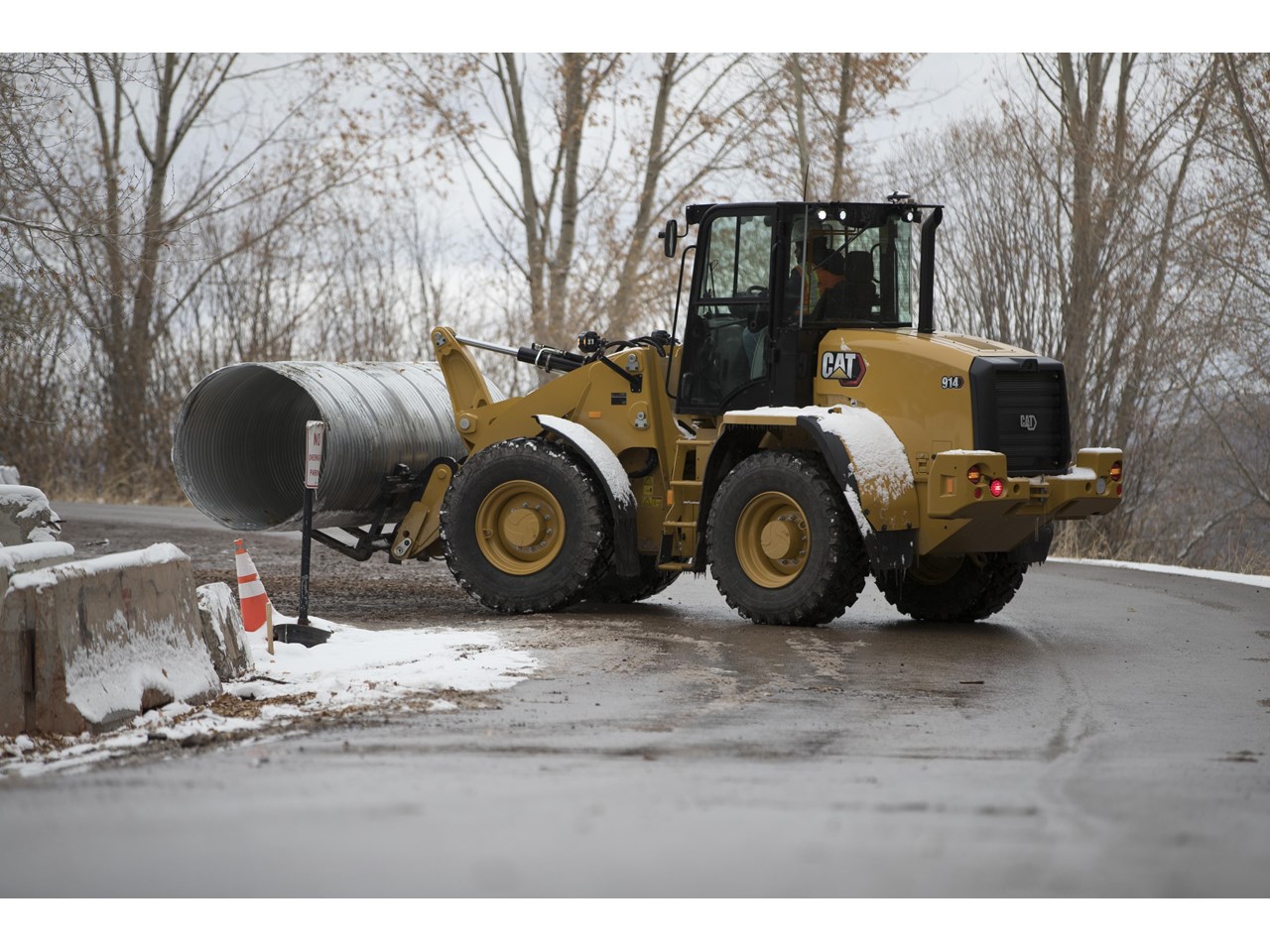

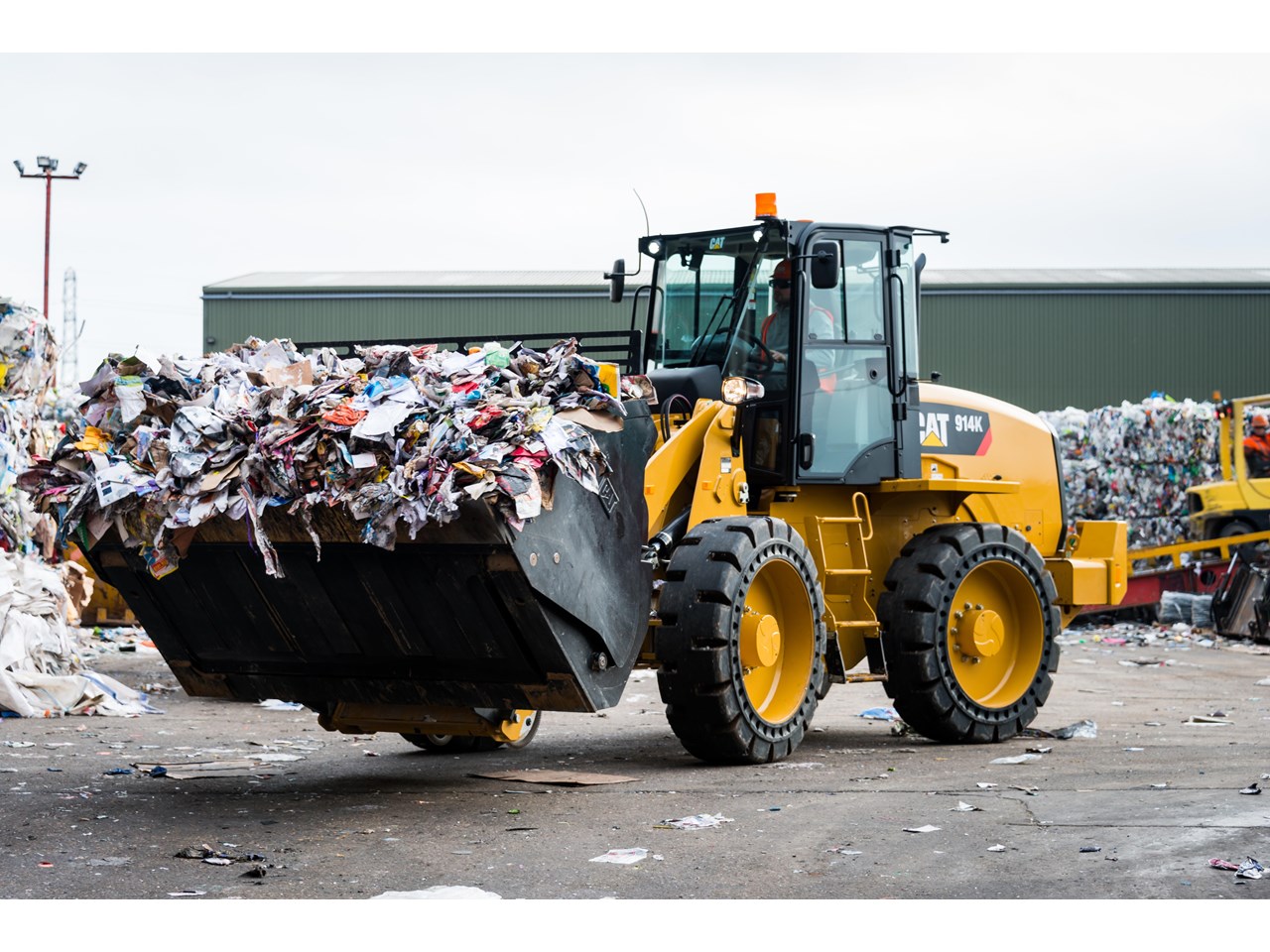

CATERPILLAR 914

CATERPILLAR?? 914 WHEEL LOADER Maximum Gross Power - 74.0 kW Net Power - 72.0 kW Engine Model - Cat C4.4 Maximum Gross Power - ISO 14396 - 74.0 kW Maximum Gross Power - ISO 14396 (DIN) - 74.0 kW Maximum Gross Power - Maximum Engine Speed - 2350.0 r/min Maximum Gross Power - SAE J1995 - 76.0 kW Rated Net Power - Rated Engine Speed - 2200.0 r/min Rated Net Power - SAE J1349 - 72.0 kW Bore - 105.0 mm Displacement - 4.4 l Emissions - Engine meets U.S. EPA Tier 3/EU Stage IIIA emission standards. Maximum Gross Torque - ISO 14396 - 450.0 N??m Maximum Gross Torque - SAE J1995 - 455.0 N??m Maximum Net Torque - ISO 9249 - 446.0 N??m Maximum Net Torque - SAE J1349 - 441.0 N??m Note Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator. Rated Net Power - ISO 9249 - 72.0 kW Rated Net Power - ISO 9249 (DIN) - 72.0 kW Stroke - 127.0 mm WEIGHTS Operating Weight - 8488.0 kg Cat?? Optimized Z-bar Loader Linkage ??? The Cat Optimized Z-bar Loader linkage combines the digging efficiency of a traditional Z-bar with tool carrier capabilities for great performance and versatility. With parallel lift and high tilt forces throughout the working range you can safely and confidently handle loads with precise control. Work Tools ??? The 914K features the Cat exclusive, Performance Series Buckets, as well as high visibility pallet forks. These tools enhance productivity and are available with either an Integrated Toolcarrier (IT) or ISO (wide) coupler style. Legacy coupler tools such as brooms, grapple buckets, multi-purpose buckets and other work tools remain compatible. Hydraulics and Controls ??? State of the art electro-hydraulic system provides low effort, fine control with fast cycle times. All-in-one joystick helps keep eyes on the work. Operator can adjust machine responsiveness with the push of a button, which allows the operator to set up the machine exactly the way they want it based on the application. High Flow option allows for the use of even the most demanding work tools. Tuned Drivetrain ??? Smooth shifting and powerful acceleration is matched with modulated hydrostatic braking in the inching/braking pedal, creating a rhythm for material moving. Creeper and electronic engine speed control makes broom and snow blower work easy. Operator tunes between smooth or aggressive shifting with the push of a button. Cab ??? All around visibility is further enhanced with the availability of a rearview camera. The deluxe cab ensures operator comfort with a heated, air suspension seat and easy to use controls. Available features such as Implement and Hystat Aggressiveness, Ride Control, Lift and Tilt Kickouts, Engine Speed Control and Rimpull Control allow the operator to customize the machine via a soft touch keypad. Serviceability ??? Extended service intervals and excellent service access make daily checks quick and easy allowing you to get to work sooner. Efficiently Powerful with its high full turn tipping loads, powerful breakout forces and increased engine power the K Series delivers a balanced solution for all customer applications. Fuel Savings Features such as Eco Mode and an On Demand Cooling Fan make the 914K both powerful and fuel efficient.
